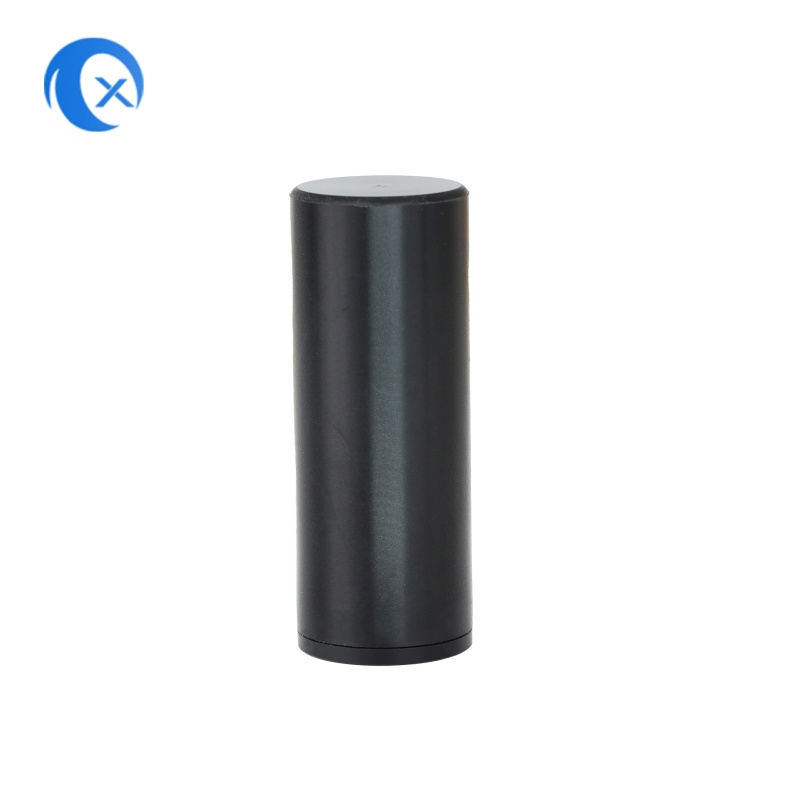

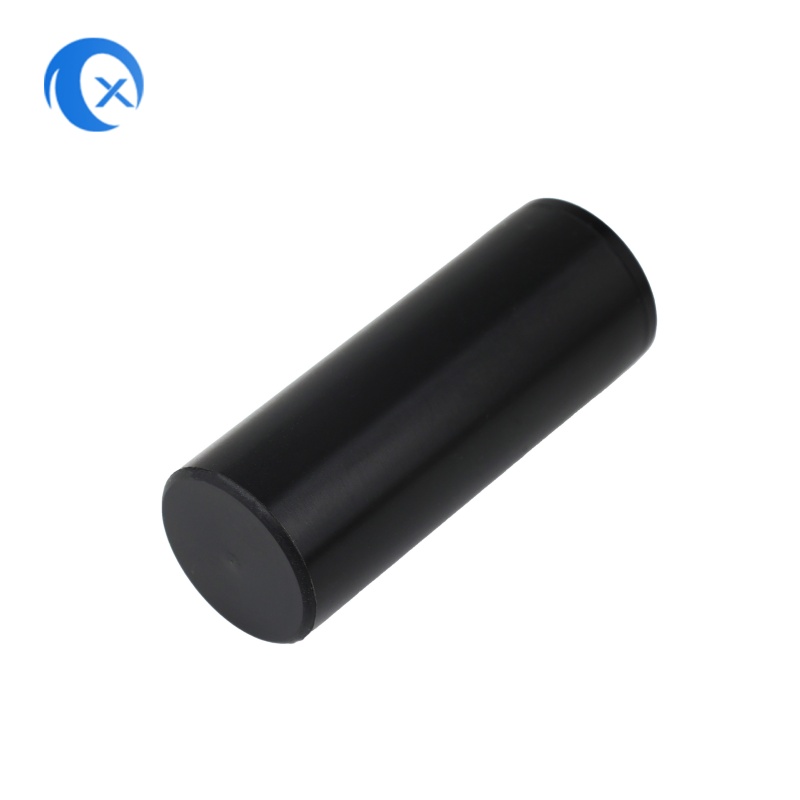

The TX-RT002 is a high-performance external active antenna designed for precision and portability. Featuring an ultra-slim Phi20 text{mm} industrial-grade plastic housing and a standard SMA Male connector, it offers a low-profile footprint without compromising on RF performance. Its advanced quadrifilar helix technology ensures exceptional satellite tracking even in challenging environments, making it the perfect choice for industrial UAVs and space-constrained outdoor terminals.
1Ultra-Slim Profile
With a diameter of only 20 text{mm}, it significantly reduces aerodynamic drag for UAVs and fits easily onto narrow mounting surfaces.
2Full-Constellation Tracking
Comprehensive support for GPS L1/L2, BDS B1/B2/B3, GLONASS, and Galileo for centimeter-level accuracy worldwide.
3Wide-Beam Quadrifilar Helix
Delivers superior circular polarization and high gain at low elevation angles, ensuring stable signal lock during dynamic motion or tilting.
4Advanced Signal Filtering
Features 32 pm 2 text{dB} active gain with integrated band-pass filters to effectively suppress out-of-band interference and multipath effects.
5Wide Voltage Range (2.2V - 16V)
Designed for industrial versatility, it can be powered directly by vehicle batteries or standard digital power rails.
Lightweight Industrial UAVs
Minimizes drag and payload while providing high-precision RTK data for surveying and inspection
Portable RTK Terminals
The slim form factor is ideal for external mounting on handheld GIS collectors and surveying tools
Compact Autonomous Systems
Perfect for small-scale AGVs, lawnmowers, and robots with limited external mounting space
Smart Infrastructure
Provides precise timing and positioning for smart city sensors and compact IoT gateways
| Category | Parameter | Specification |
| Electrical | Frequency Range | GPS L1/L2, BDS B1/B2/B3, GLONASS, Galileo |
| Polarization | RHCP (Right Hand Circular Polarization) | |
| Active Gain (Kp) | 32dB ± 2dB | |
| V.S.W.R | ≤ 2.0 | |
| Noise Figure | ≤ 1.5 dB | |
| Out-of-band Rejection | ≥ 30dB (±100MHz) | |
| Power | Working Voltage | 2.2V ~ 16.0V DC |
| Working Current | ≤ 35mA | |
| Mechanical | Connector Type | SMA-J (Male Pin) |
| Dimensions | Φ27.5 * 59.0 mm | |
| Weight | Compact & Lightweight | |
| Environmental | Operating Temp | -40℃ ~ +85℃ |
| Storage Temp | -45℃ ~ +90℃ |
