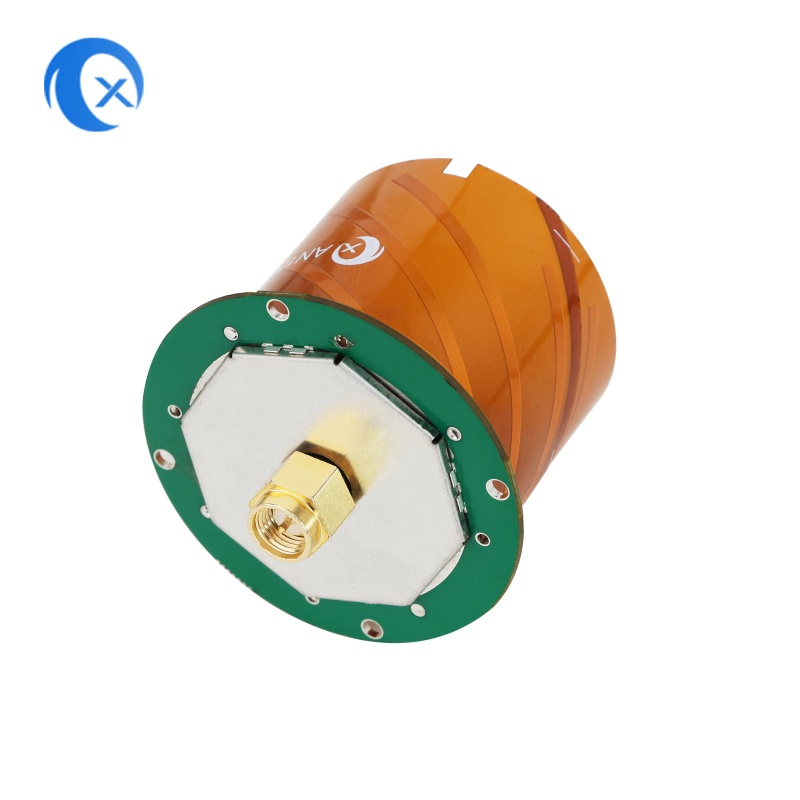

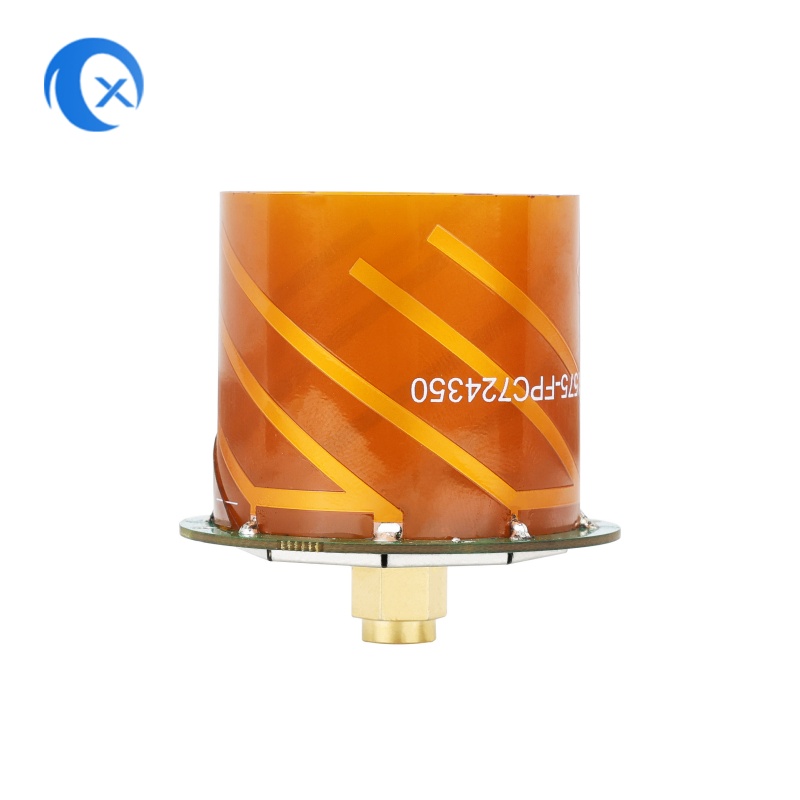

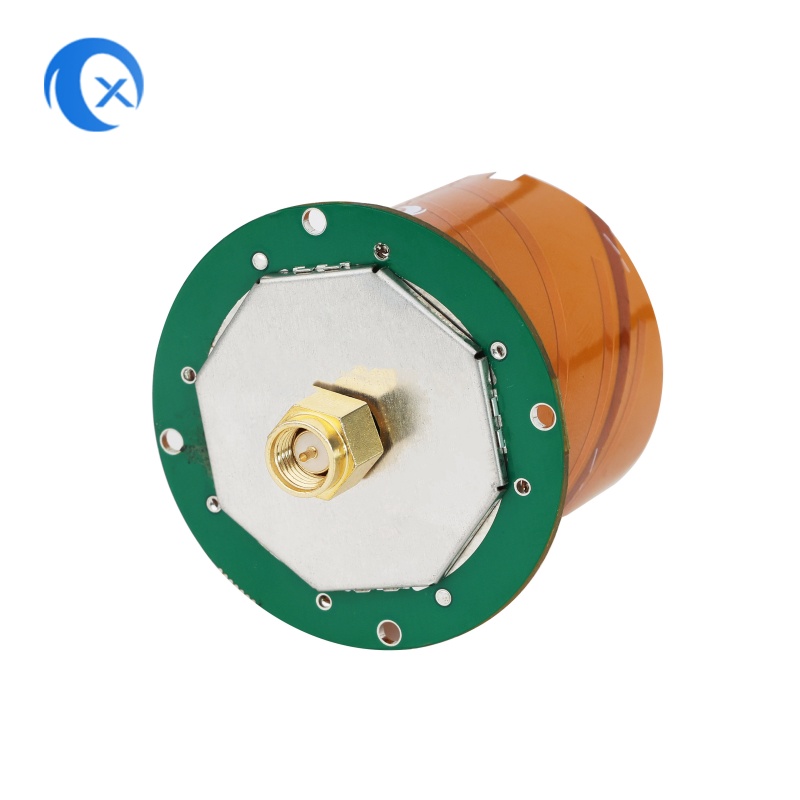

The TX-RT004 is the embedded (internal) version of the TX-GR01-A, offering identical high-end RF performance in a shell-less form factor. It is specifically designed for engineers and manufacturers who need to integrate high-precision GNSS capabilities into their own custom enclosures or compact device spaces. Equipped with an SMA Male connector, it serves as the perfect internal RTK core for drones, handheld terminals, and smart industrial equipment.
1Seamless OEM Integration
The compact, shell-less design reduces weight and volume, allowing for flexible installation within proprietary housings.
2Identical High-End Performance
Delivers the same high gain, low noise figure, and millimeter-level phase center stability as the fully-enclosed TX-GR01-A.
3Full-Constellation Tracking
Comprehensive support for GPS L1/L2, BDS B1/B2/B3, GLONASS, and Galileo for global centimeter-level accuracy.
4Advanced Anti-Interference
Features an integrated LNA and premium band-pass filters with ≥30dB out-of-band rejection for stable signal lock in noisy environments.
5Industrial Wide Voltage (2.2V - 16V)
Versatile power compatibility allows direct connection to 12V vehicle or industrial power rails without extra regulation.

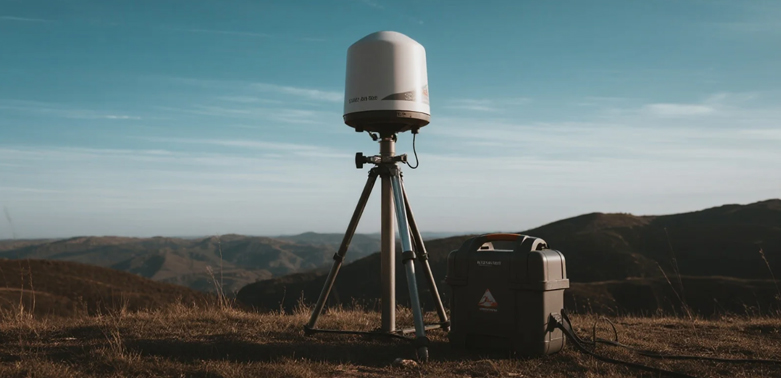

Custom OEM Equipment
RTK base stations or mobile units with proprietary housing designs
UAV System Integration
Internal mounting in drone airframes to reduce drag and optimize weight distribution
Precision Agri-Tech
Integration into control boxes for autonomous tractors and harvesters
High-Precision Handhelds
Core antenna component for GIS data collectors and professional surveying tools
| Category | Parameter | Specification |
| Electrical | Frequency Range | GPS L1/L2, BDS B1/B2/B3, GLONASS, Galileo |
| Polarization | RHCP (Right-Hand Circular Polarization) | |
| Active Gain | 32dB ± 2dB | |
| Noise Figure | ≤ 1.5 dB | |
| V.S.W.R | ≤ 2.0 | |
| Out-of-band Rejection | ≥ 30dB (±100MHz) | |
| Power | Working Voltage | 2.2V ~ 16.0V DC |
| Working Current | ≤ 35mA | |
| Mechanical | Mounting Type | 3-M2.5*6 Screw Mount |
| Connector | SMA-J (Male) | |
| Dimensions | Φ43.5 * 39.1 mm | |
| Operating Temp | -40℃ ~ +85℃ |
