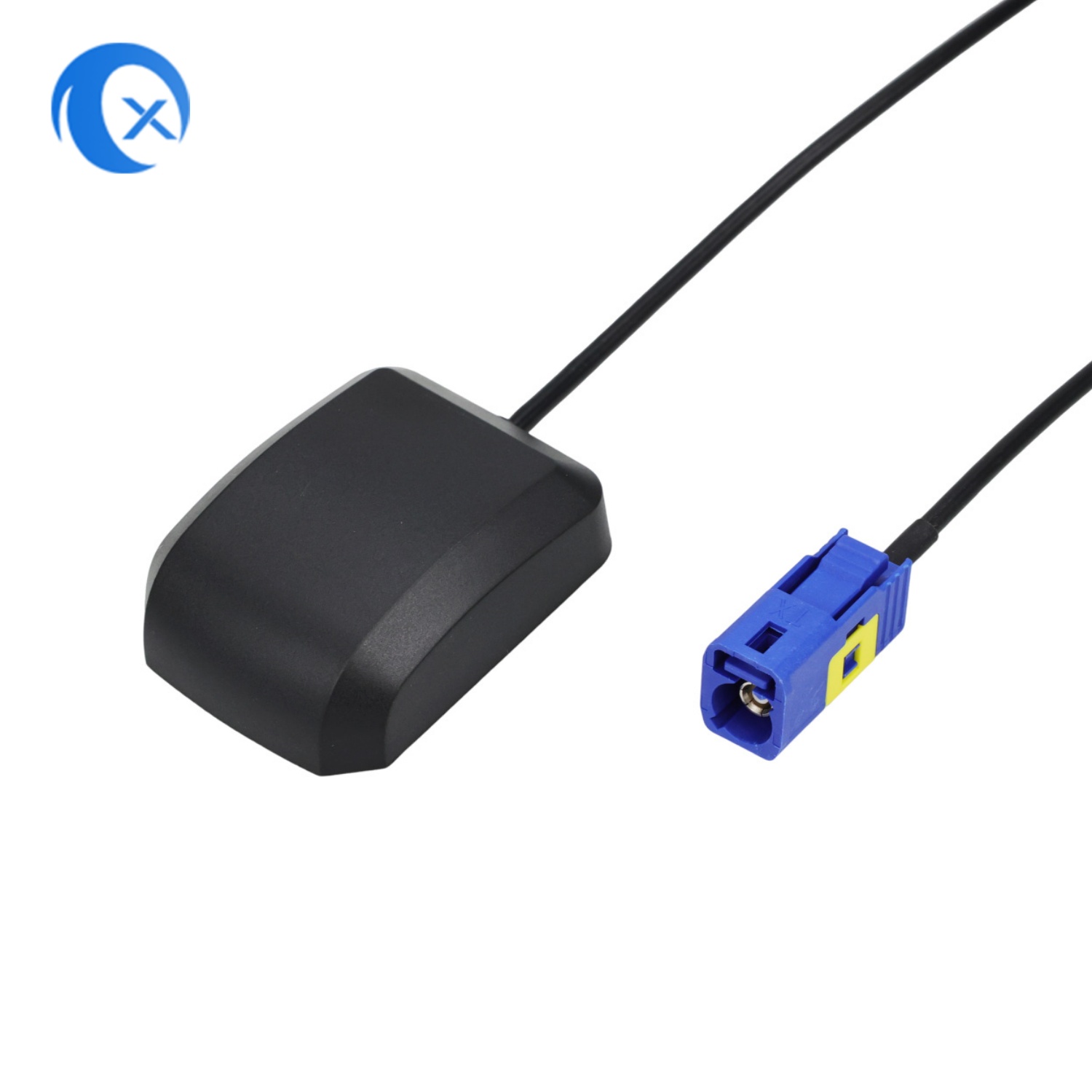

TX Electronics TX-AG019 GNSS Navigation Antenna | High Precision Glonass Band | High Performance Active External GPS Antenna

TX-AG019 is a high-performance active GNSS antenna. Compatible with GPS, Glonass and multiple satellite positioning systems, this external navigation antenna adopts high-gain amplification design to improve satellite signal reception sensitivity. With stable frequency performance, anti-interference capability and durable waterproof structure, it maintains precise positioning even in complex environments. It is widely used for vehicle navigation, tracking equipment, industrial positioning terminals and intelligent monitoring systems, providing accurate, continuous and reliable satellite positioning signals for commercial and industrial navigation applications.

Contact Message
Key Features
  • 1Advanced In-house LNA

    Features a high-performance, self-developed LNA with 33dBi gain, ensuring elite signal sensitivity even across long cable runs.

  • 2Dual-Mode Precision

    Simultaneous tracking of GPS L1 and GLONASS L1. Delivers reliable positioning and faster TTFF in dense industrial zones or urban environments.

  • 3Flexible Installation (3m Cable)

    Equipped with 3 meters of premium RG174 cable. Ideal for long-range routing on trucks, specialty vehicles, and outdoor gateways.

  • 4Industrial Reliability

    Built with durable ABS housing and supporting a standard 3.0V-5.0V range. Engineered for long-term stability in extreme outdoor conditions.

Technical Specifications
Category Parameter Specification
Electrical     Frequency Range1574.42MHz ~ 1610MHz (GPS + GLONASS)
Active Gain33dB ± 3dB (Including LNA)
PolarizationRHCP
V.S.W.R≤ 2.0
Impedance50 Ohm
Power  Working Voltage3.0V ~ 5.0V DC
Working Current≤ 15mA
Mechanical    Dimensions42 * 36 * 14 mm
ConnectorSMA-J (SMA Male)
Cable TypeRG174, L=3000mm
MountingMagnetic / Adhesive Mount
Environmental   Operating Temp-40℃ ~ +85℃
Humidity95% No condensing
ComplianceRoHS 2.0

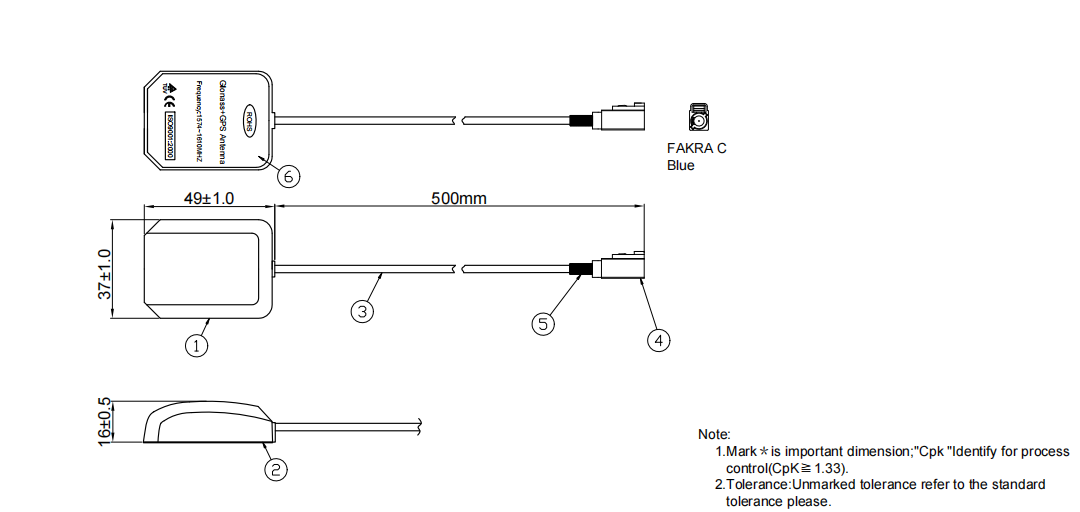

Product Structure

GNSS Active Antenna
