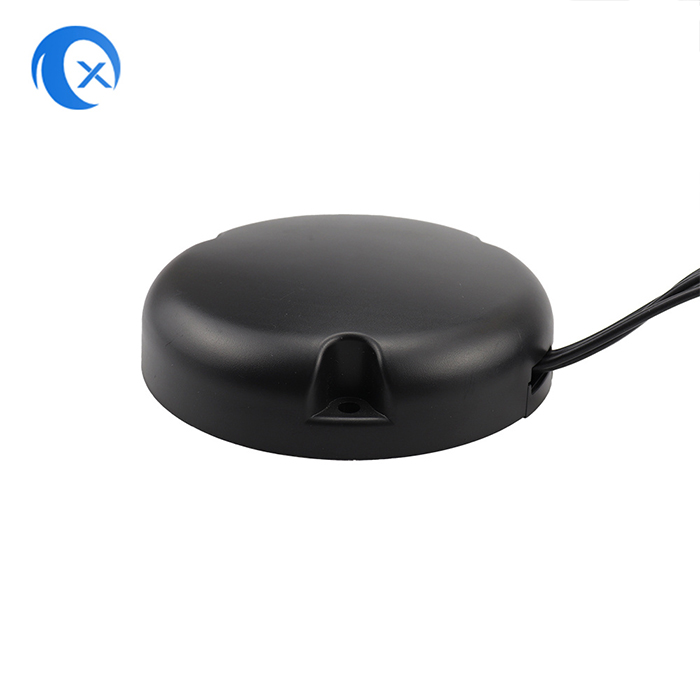

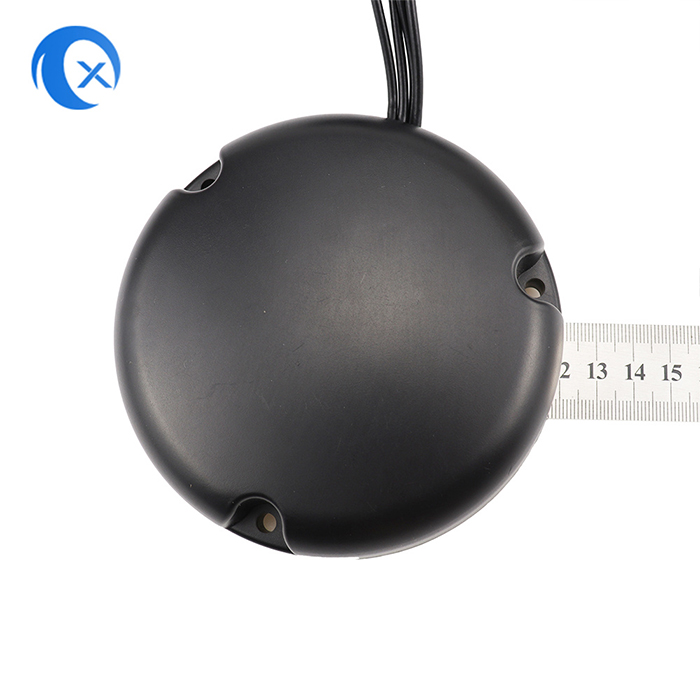

The TX-CM001 is a high-performance 4-in-1 combo antenna designed for multi-mode communication and high-density IoT gateways. Integrating dual 4G LTE, Dual-Band WiFi, and GPS/GNSS elements into a single rugged enclosure, it features a 4-lead independent output to ensure high signal throughput and minimal interference.
1Wide Bandwidth
Supports full-spectrum 4G/LTE (700-2700MHz), dual-band WiFi, and high-gain active GPS for accurate positioning and rapid data transfer.
2Robust Integration
Features an M12 screw-mount base for secure, vibration-resistant installation, rated IP67 for extreme durability in harsh environments.
3High-Quality Interconnect

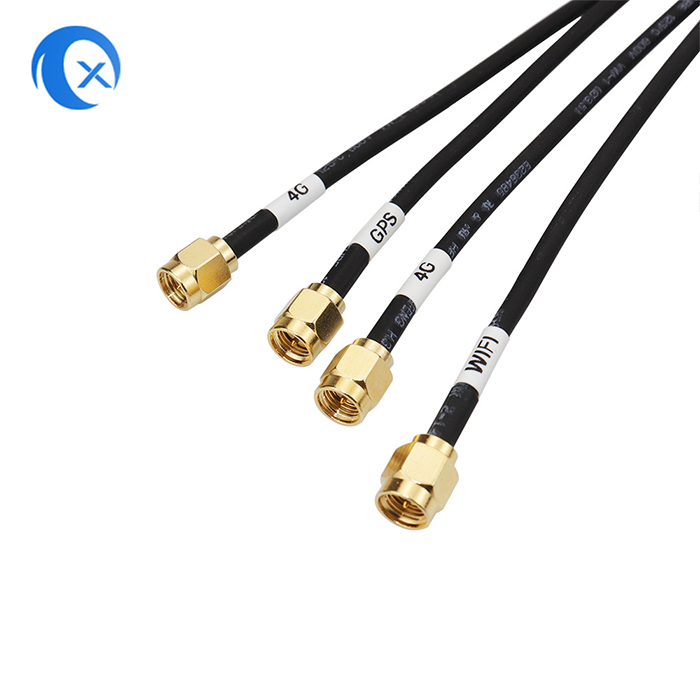

Standard 3-meter low-loss cables with SMA connectors ensure high efficiency for professional mobile IoT infrastructure.
Remote Logistics Tracking
In-vehicle Wireless Router
Public Transit Dispatching
Vending Machines
High-capacity Outdoor IoT Terminals
| Category | Technical Parameters | Specifications |
| Frequency Range | 4G LTE | 700-960 MHz / 1710-2700 MHz (Dual Leads) |
| WiFi (Dual Band) | 2400-2500 MHz / 5150-5850 MHz | |
| GPS / GNSS | 1575.42 MHz ± 2.0 MHz | |
| RF Performance | Peak Gain | 4G: ~3.0 dBi / WiFi: ~3.0 dBi / GPS: 28±2 dB (LNA) |
| V.S.W.R | ≤ 3.0 (4G/WiFi) / ≤ 2.0 (GPS) | |
| Polarization | Linear (4G/WiFi) / RHCP (GPS) | |
| Impedance | 50 Ω | |
| Mechanical Spec | Dimensions | Screw-Mount Dome (Dimensions as per drawing) |
| Lead Type | 4-Lead Independent Output, L=3000mm | |
| Cable Type | Low Loss RG174 / LMR100 | |
| Connector | SMA Plug (Male Pin / Male Hole Optional) | |

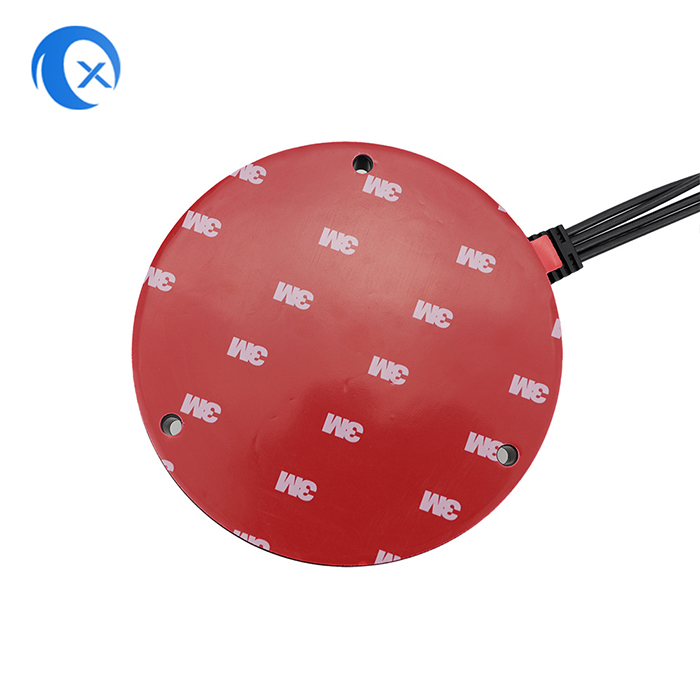

| Mounting | M12 Screw Thread + 3M Adhesive Pad | |
| Reliability | Ingress Protection | IP67 (Waterproof & Dustproof) |
| Operating Temp | -40℃ ~ +85℃ |
