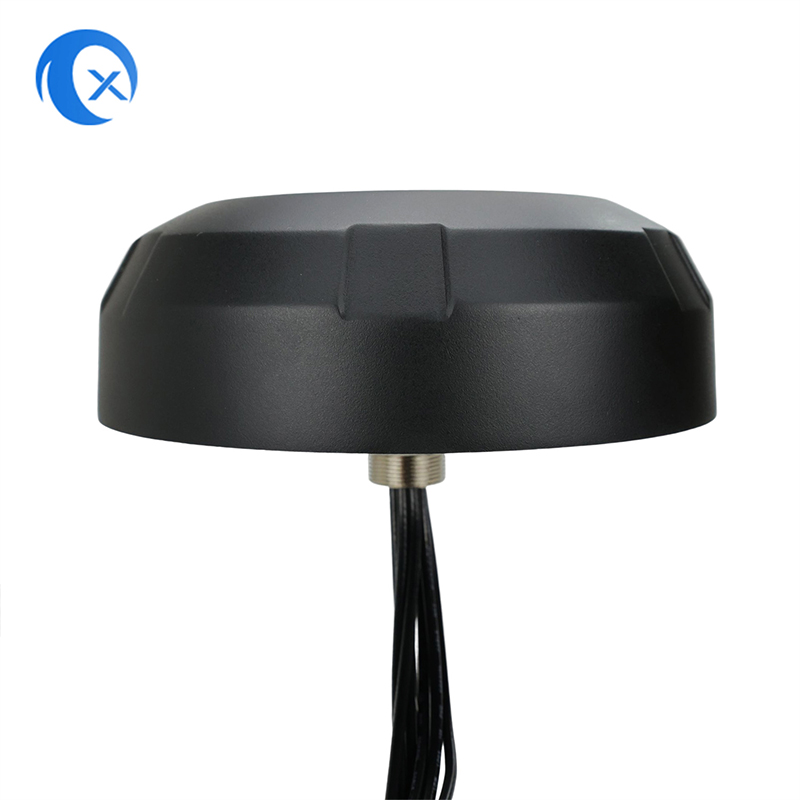

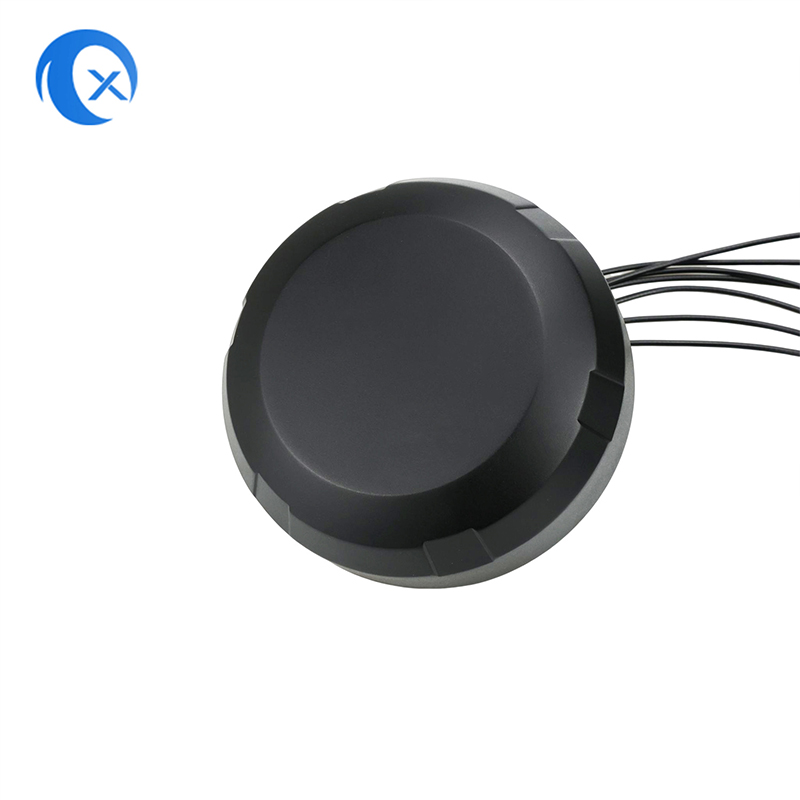

The TX-CM002 is a high-performance, multi-functional dome antenna designed for high-density communication. By housing 5G, Dual-Band WiFi, and GPS elements within a single robust enclosure with a unique 7-lead output, it provides a streamlined connectivity solution for vehicle telematics and industrial gateways.
1Full-Spectrum Support
Covers 5G/LTE (600-6000MHz), Dual-Band WiFi, and GPS, delivering high-speed data transmission and precision positioning in one unit.
2Ruggedized Design
Engineered with a UV-resistant ABS radome and IP67 rating, ensuring long-term stability in harsh outdoor or mobile environments.
3Reliable Interconnect
oFeatures 3-meter low-loss cables (LMR100/RG174) with standard SMA connectors to maintain signal integrity over distance.
Smart Public Transport
Logistics Fleet Management
Outdoor Security Systems
Industrial IoT (IIoT)
Autonomous Driving Infrastructure
| Category | Technical Parameters | Specifications |
| Frequency Range | 5G / 4G LTE | 600 MHz ~ 6000 MHz (Total 4 Leads) |
| WiFi (Dual Band) | 2400-2500 / 5150-5850 MHz (Total 2 Leads) | |
| GPS / GNSS | 1575.42 MHz ± 1.02 MHz (1 Lead) | |
| RF Performance | Peak Gain | 5G: ~3.0 dBi / WiFi: ~2.5 dBi / GPS: 28±2 dB (LNA) |
| V.S.W.R | ≤ 2.5 (5G/WiFi) / ≤ 1.5 (GPS) | |
| Polarization | Linear (5G/WiFi) / RHCP (GPS) | |
| Impedance | 50 Ω | |

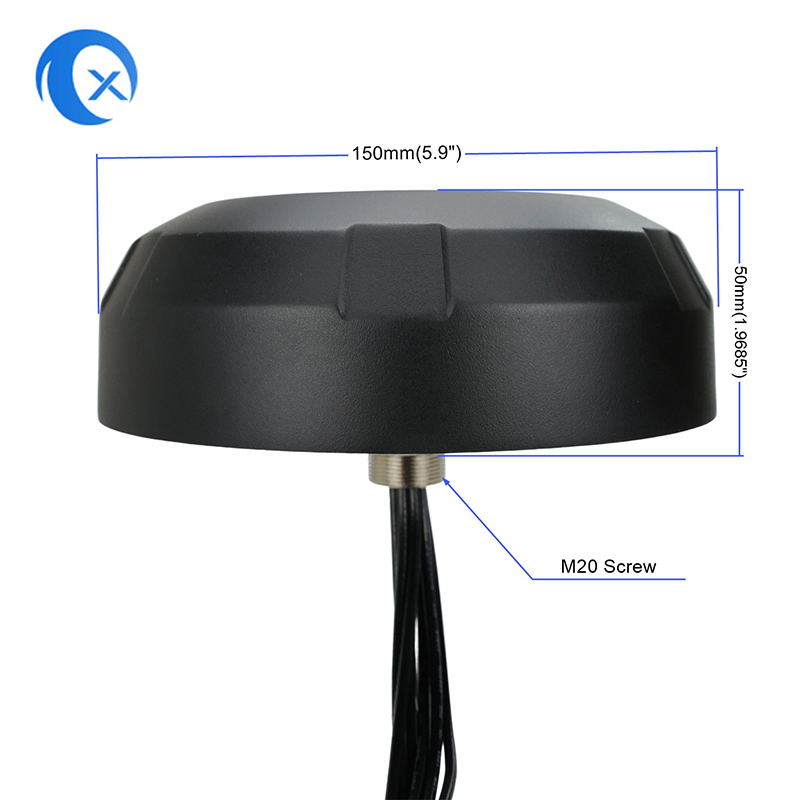

| Mechanical Spec | Dimensions | Large Dome (Dimensions as per engineering drawing) |

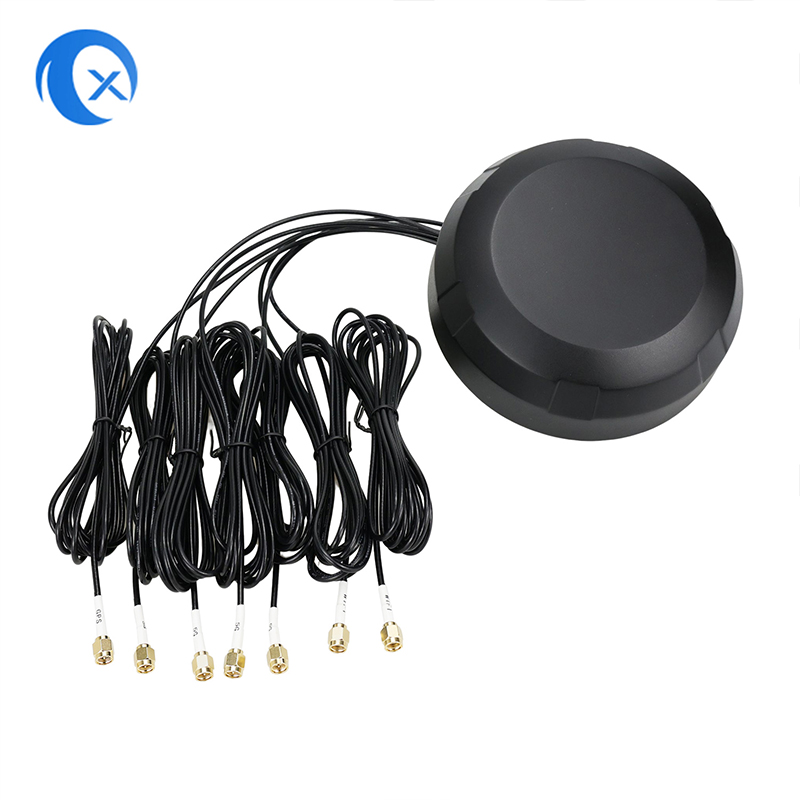

| Cable Output | 7-Lead Output, Length = 3000mm (Customizable) | |
| Cable Type | LMR100 / RG174 Low Loss Cable | |

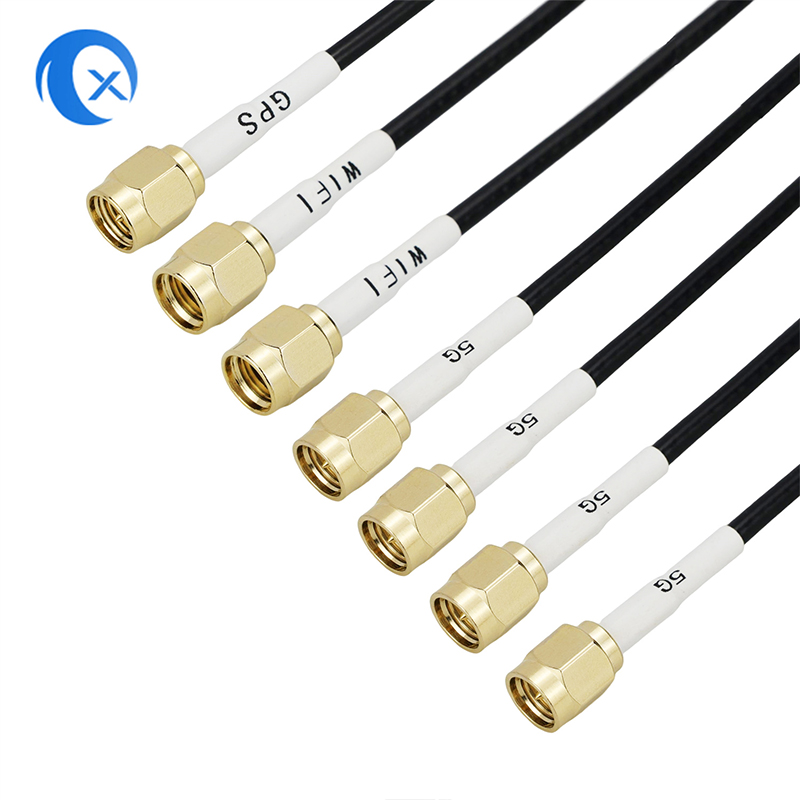

| Connector | SMA Plug (Male Pin / Male Hole optional) | |

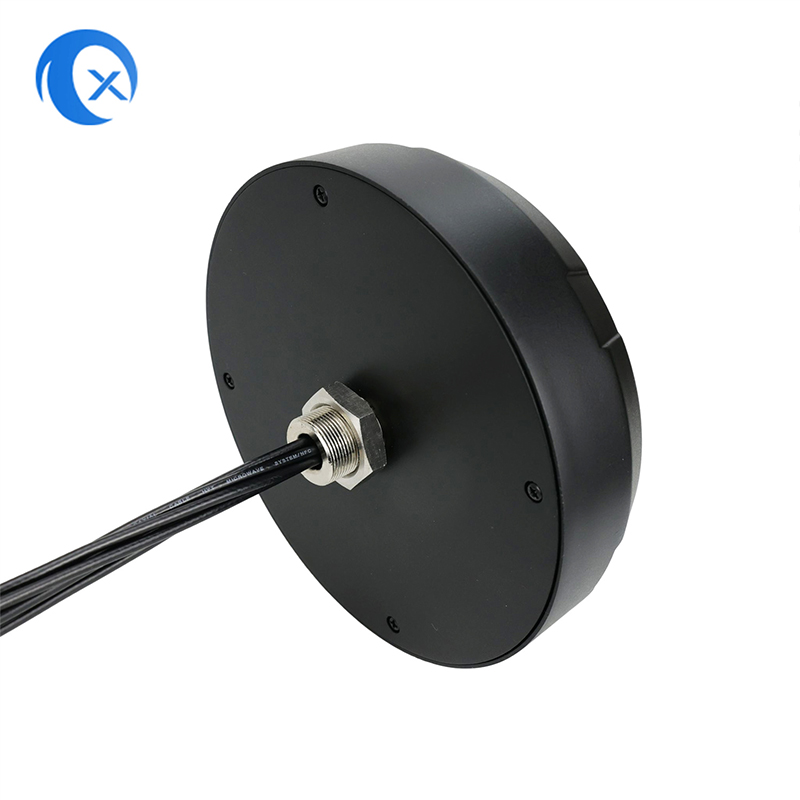

| Mounting | M20 Nut Screw Mount | |
| Reliability | Operating Temp | -40℃ ~ +85℃ |
| Ingress Protection | IP67 (Waterproof & Dustproof) | |
| Housing Material | ABS (UV Resistant) |
24H Rapid Response | Free Sample Available
